C-beam forming machine equipment

The high-speed endless cutting C-beam machine belongs to the economic cutting profile (other cold-formed thin-walled steel, profiled steel plate, etc.), because of the reasonable section shape, they can make the steel high efficiency, improve the cutting capacity. Different from the common I-shape, the wing embroidery of H-shaped steel is widened, and the inner and outer surfaces are usually parallel, so that it is easy to connect with other components with high strength bolts. Its size structure is reasonable, series and models are complete, which is convenient for design and selection. Endless cutting C-beam machine in China has undergone many stages of change, from unable to change type to replaceable type, and later used a lot of different methods on the half set of change type.

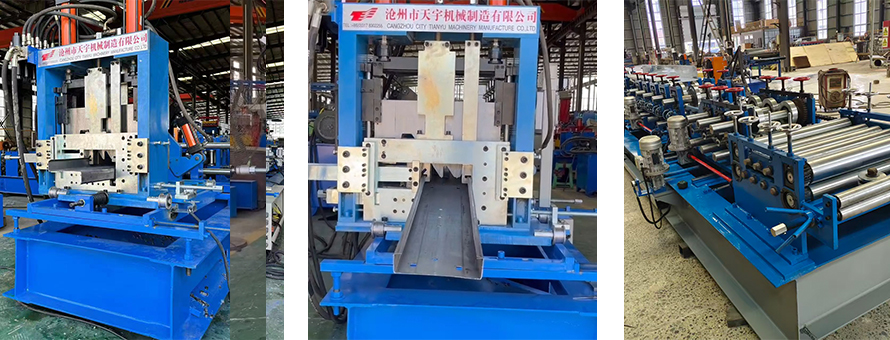

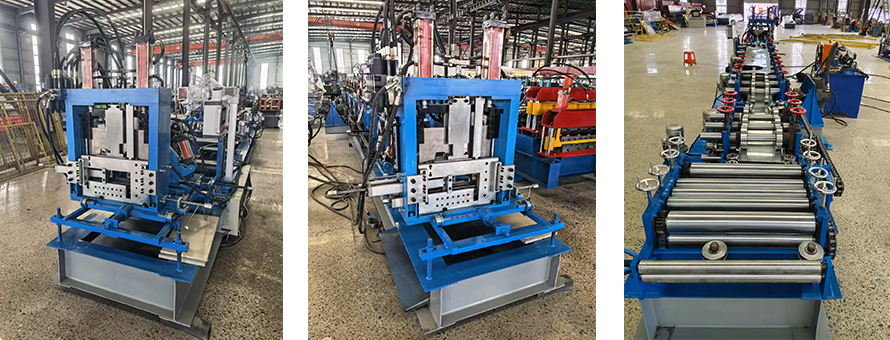

High speed endless cutting C-beam machine is mainly composed of passive discharging frame, discharging frame base, feeding and leading platform, leveling device, forming host, punching device, forming cutting device, hydraulic station, computer control cabinet, etc.

Comparison between high speed endless cutting C-beam machine and flying saw

1. Power saving and energy saving (15 kwh per hour)

2. Less length waste (flying saw cut about 5mm, loss after cutting; endless cut about 8mm, waste products can be processed. )

3. No pole cut off, no noise pollution, no dust, durable 2

4. Endless cutting C-beam machine does not need to change the mold, arbitrary cutting, time-saving and labor-saving.

5. No need to store a large number of molds.
