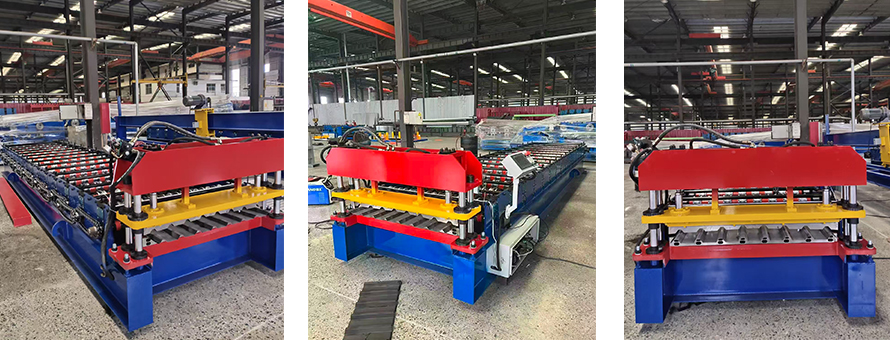

Forming and arching integrated equipment

The equipment is composed of loading frame,forming host,cutting device after forming,hydraulic drive system and electric control cabinet.

1.Material:galvanized color plate

2.Width 1000mm

3.Thickness 0.2-0.7mm

1.Color matching with green drape

2.Overall dimension(about)5500mmx1300mmx1200mm.

3.Main engine weight(about)2T

4.The number of forming rows is 9

5.Finish machining of 45#steel for forming roller,and polishing after hard chromium plating on the surface

6 forming roller diameter 70mm,45×steel finish machining

7 wall panels on both sides 16mm

8 frame specification 300h steel

9 motor power hydraulic drive 3.7KW

10 chain 1 inch

1 transmission mode hydraulic motor drive

2 forming speed 18-20m/min

3 cutting mode cut off after hydraulic forming

4 cutter material:Cr12 heat treatment thickened type,high abrasion resistant cutter plate

Electric control system includes PLC,touch screen,code counter,PLC brand Delta
