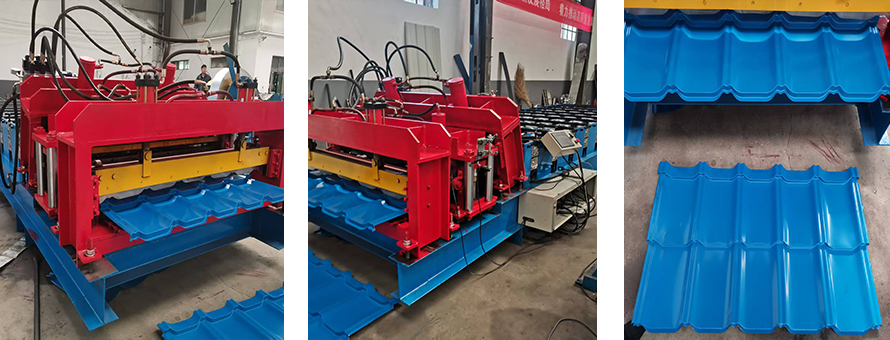

Glazed tile roll forming machine

Model 1000 glazed tile machine,wheel diameter 140mm,pressing thickness 0.3-0.8mm,mainly produces glass tile,roof panel,etc.

Model 1000 glazed tile machine is mainly composed of feed in platform,forming host,die pressing device,forming shear device,hydraulic station,computer control system,etc.The optional equipment includes ordinary feeding machine,hydraulic feeding machine,automatic chopping machine,finished product bracket,etc.

The antique glazed tile formed by 1000 type glazed tile machine has the characteristics of beautiful appearance,simple and elegant,elegant modeling and good taste.It can be widely used in garden factories,tourist scenic spots,pavilions,hotels,villas,exhibition halls,resorts,families and other buildings and outdoor decoration.

Main technical parameters

1.Installation size:11000mm×1700mm×1600mm

2.Molding number:11-13

3.Roller material:45×steel

4.Plating thickness of roller:0.05mm

5.Cutter material:Cr12

6.Molding speed:0-3m/min

7.Electric control system:industrial computer PLC frequency conversion control

8.Main engine power:4kw

9.Power of hydraulic station:4kw

10.Plate thickness:0.4-0.6mm

11.Sheet width:1250 mm(other widths can be customized)
