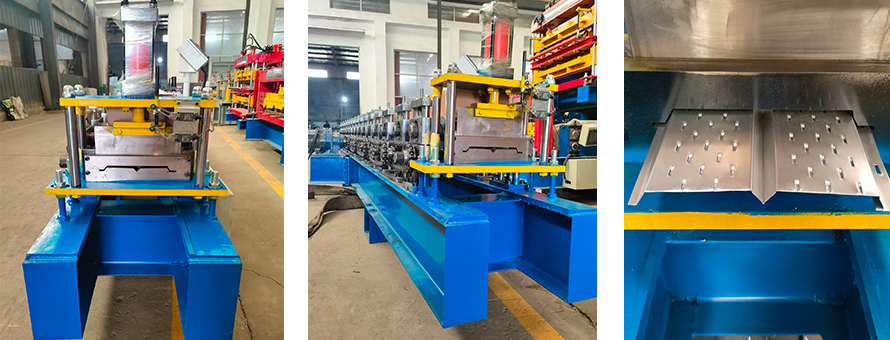

Wall panel roll forming machine

Wall panel roll forming machine

900 profiled color steel tile equipment model:15-225-900

1000 corrugated roof and wallboard

1.Length×width×height:4600mm*1300mm*1200mm

2.Weight:2.About 1 ton

3.Forming shaft:diameter 68mm,45×quenching and tempering

4.Forming wheel:material 45×forging hard chromium plating

5.Main chassis:250 channel steel

6.Number of molding passes of color steel tile press:9 rows

7.Rotation mode of color steel tile press:sprocket chain

8.Electric control system of color steel tile press:the whole machine is controlled by industrial computer PLC

9.Color steel tile press equipment host power:3kw,computer shear power:3kw

10.Working speed of color steel tile press:8-10m/min

11.Hydraulic station pressure of 900 profiled color steel tile equipment:10-12mpa

12.900 profiled color steel tile equipment feeding plate thickness:0.2-0。7mm

13.Feeding width of 900 profiled color steel tile equipment:1000mm

14.Power supply:380V,50Hz

15.Purpose:wall panel

High level automatic control software is used for the corrugated roof and wallboard to realize the production information management.The automatic control system of the whole unit uses highly integrated network to improve the performance of the automation system The color steel tile equipment also has the advantages of operation,maintenance,high-level automatic control software for the color steel tile press equipment to realize production information management.The automatic control system of the whole unit adopts highly integrated network,which makes the performance of the automation system superior.The color steel tile press equipment also has the advantages of operation,maintenance,maintenance and mechanical debugging.
